CS-HPS-45
CHUSHANG MACHINERY
8419399090
Product Description

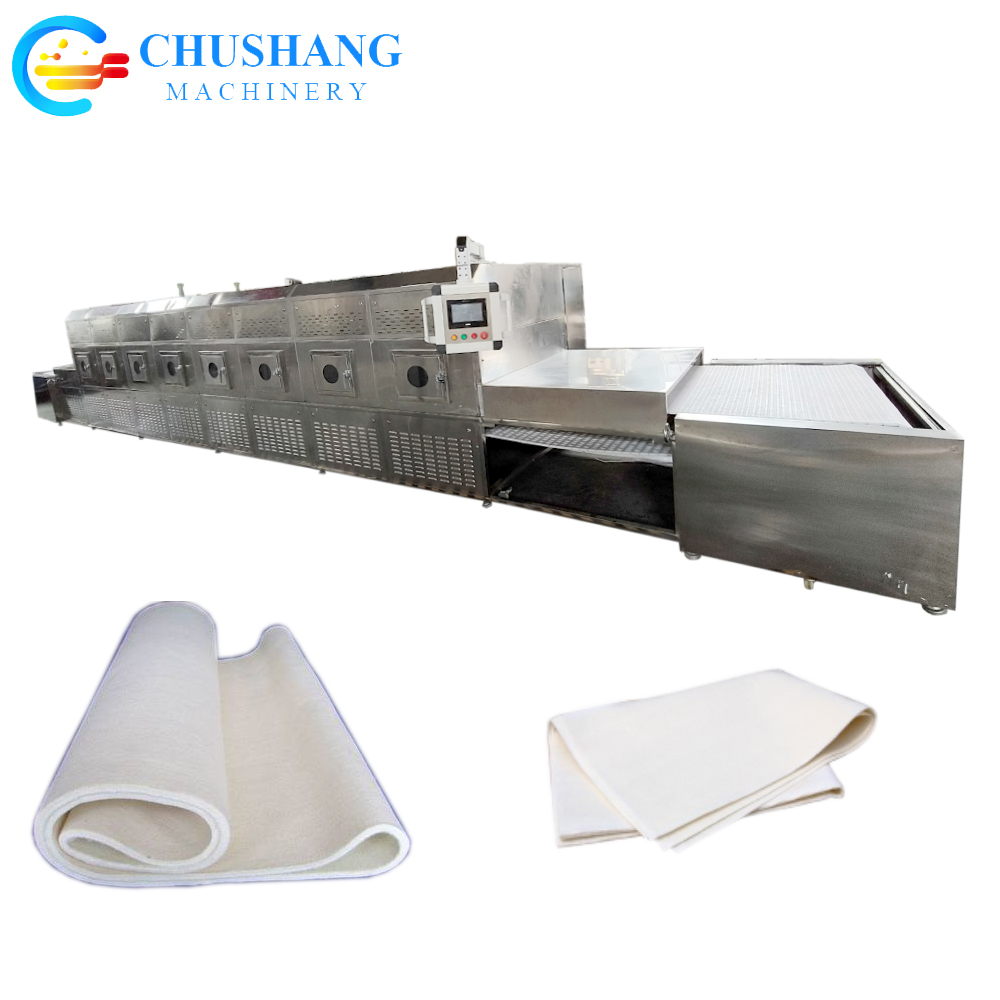

This is a tunnel microwave fiber blanket and felt Dryer, which has the advantages of overall uniformity, energy saving, high efficiency and environmental friendliness. The machine adopts PLC automatic control system, which is easy to operate. The body, conveyor belt and electrical components are all made of high-quality materials. At the same time, the equipment size can be customized according to the customer's demands. This machine can be widely used in various fields such as food, pharmaceutical, textile, chemical, building materials, wood and latex products. Welcome customers to consult and negotiate.
Technical Parameter
| Product Model | CS-HPS-45 |

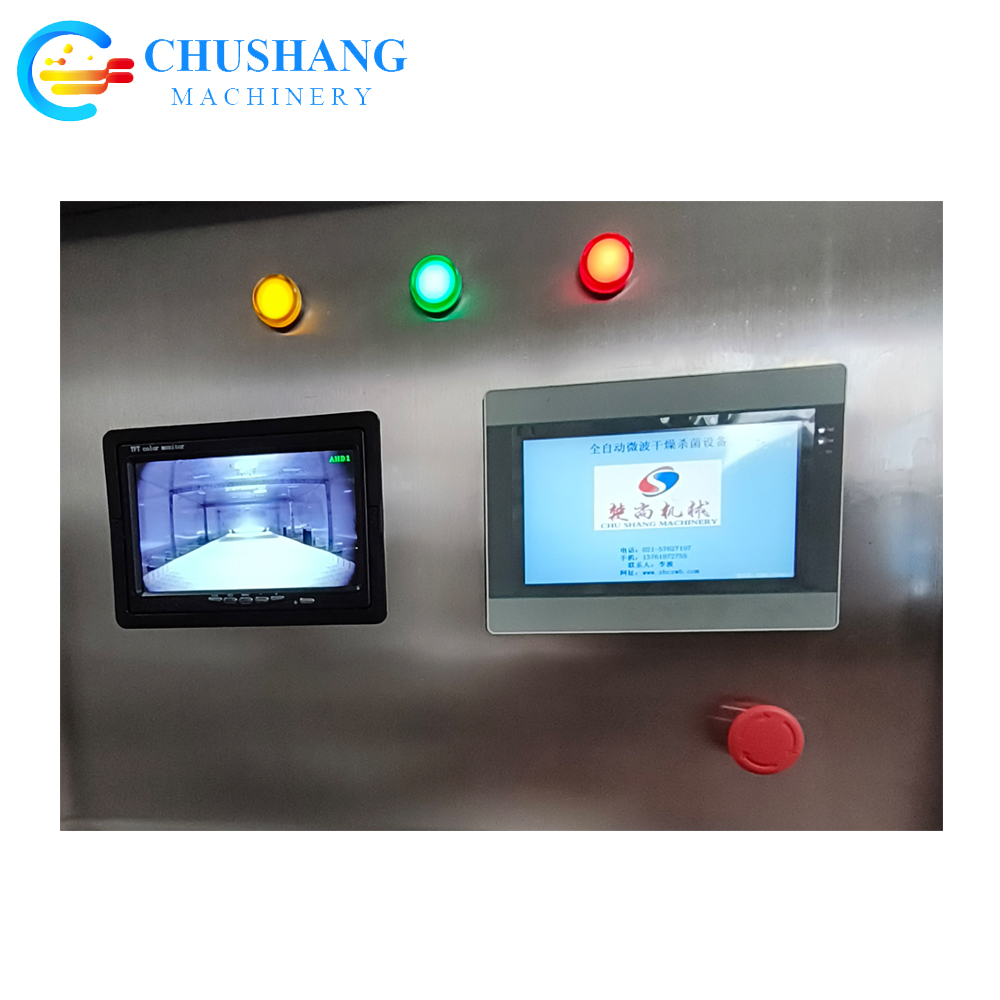

| Control System | Fully automatic PLC touch screen control and LCD imaging display |
| Working Frequency | 2450MHz ± 50Hz |
| Transmission Speed | 0-10m/min (adjustable) |
| Capacity | 10-2000kg/h |
| Cooling System | air-cooling or water-cooling |
| Microwave Leakage Standard | ISO ≤ 5mw/cm² |
| Application | food, pharmaceutical, textile, chemical, building materials, wood and latex products,etc. |
| Machine can be customized according to customer needs | |

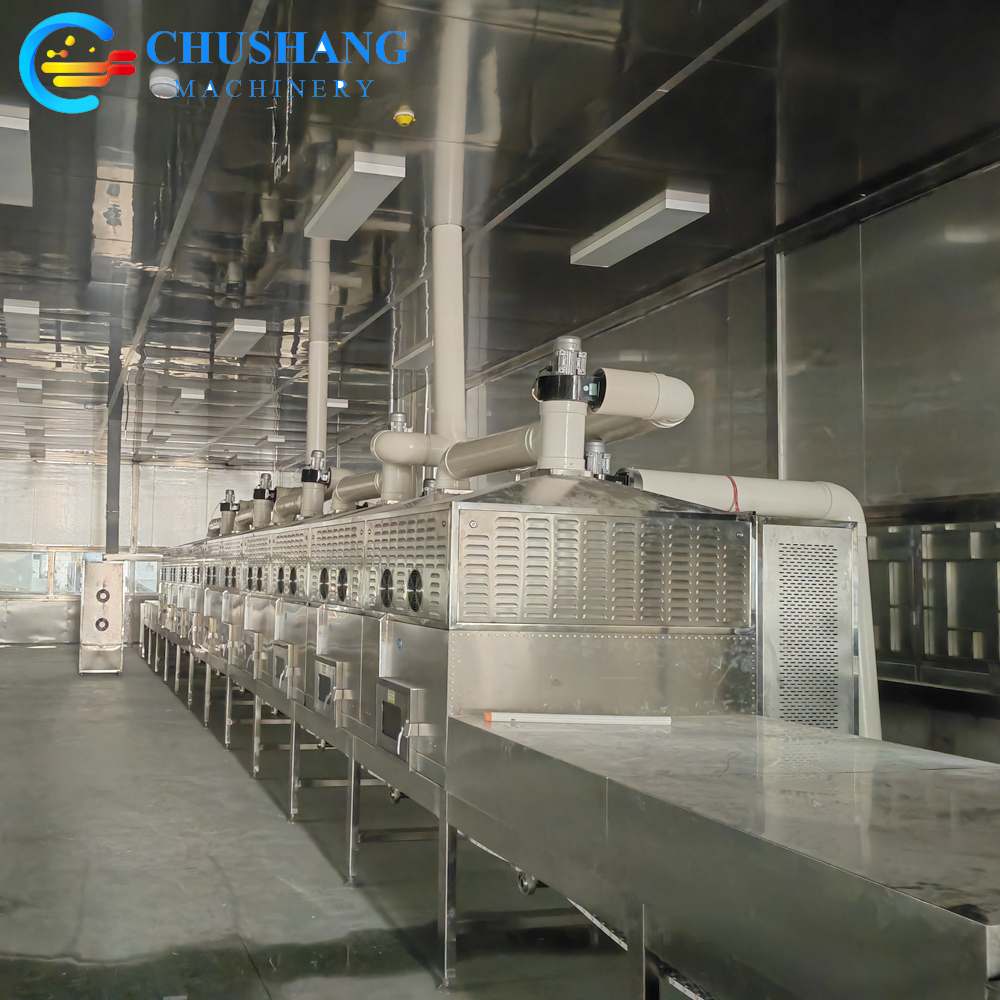

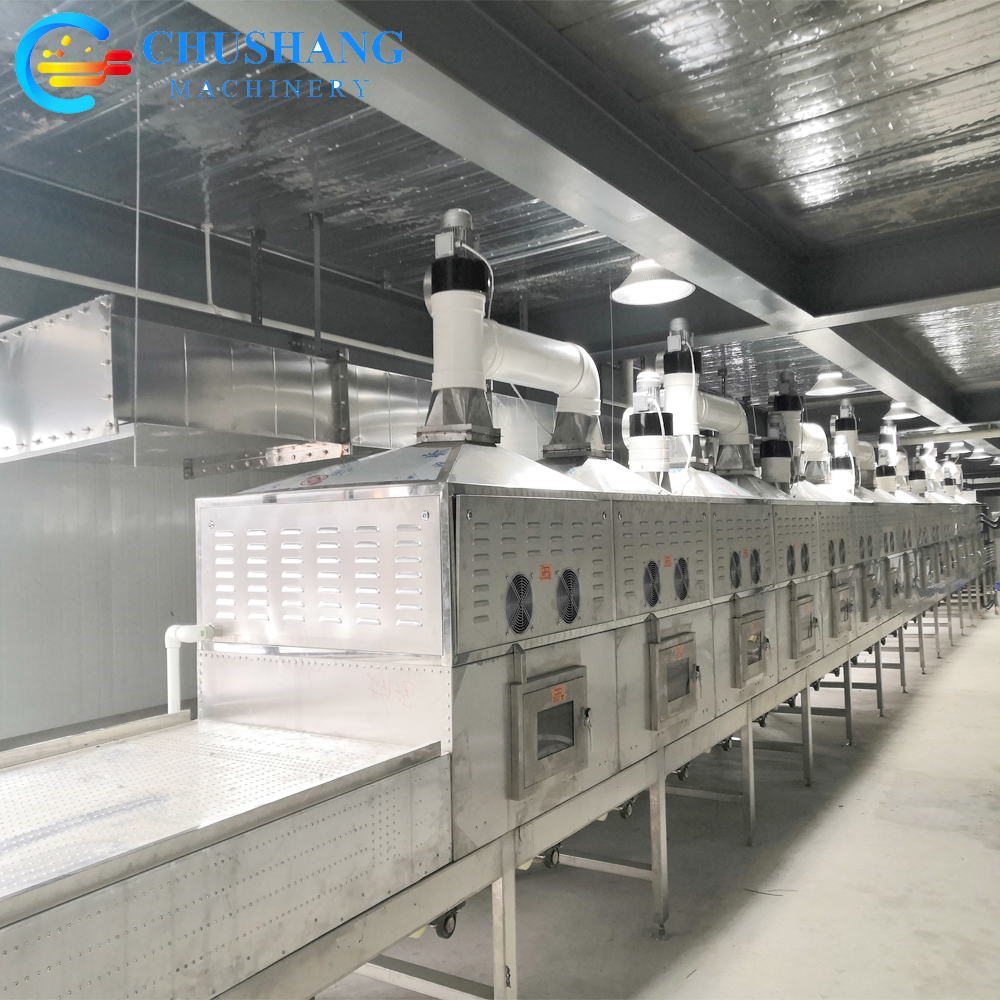

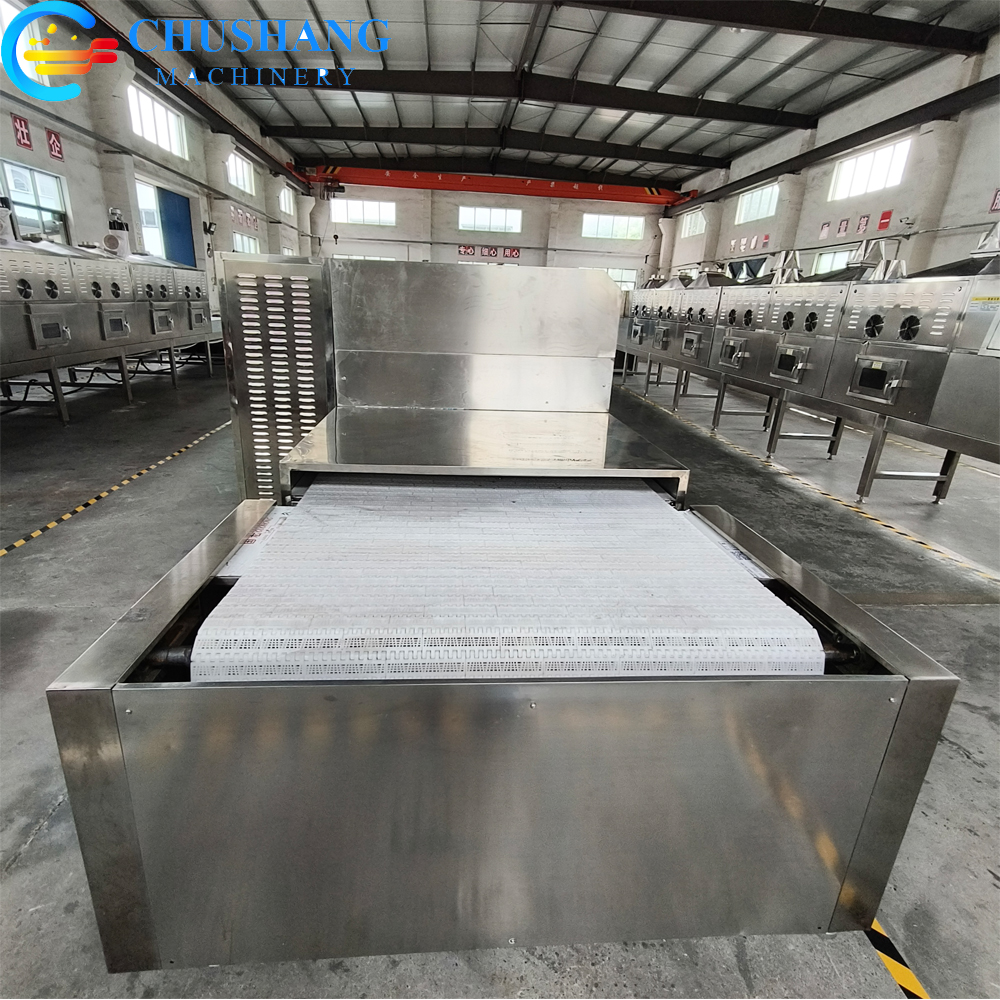

Product Display
Microwave Working principle
Microwaves are electromagnetic waves with frequencies between 300 and 300 gigahertz. Water molecules in the heated material are polar molecules, which cause motion and friction between molecules under the action of rapidly changing high-frequency electromagnetic fields, at this time, the microwave field can be converted into heat energy, which makes the material temperature rise, resulting in a series of processes such as heating, drying, sterilization, expansion and so on.
Microwave technology has advantages that traditional drying and sterilization techniques cannot match:
Heating Rapidness: Microwave heating only requires one tenth to one percent of the time of conventional heating methods to complete the entire heating process. The material is heated both inside and outside, with a small temperature difference, retaining the nutritional components and flavor of the food.
Good sterilization effect: High sterilization efficiency, microwave can heat materials in an extremely short time, quickly reaching the temperature for sterilization and disinfection.
Overall uniformity: Microwave energy can penetrate the interior of the material, and its heating process is carried out simultaneously throughout the entire material, with rapid and uniform temperature rise, greatly reducing the time for heat conduction in conventional heating.
Energy saving and environmental friendliness: The energy used for microwave is electric energy, which is pollution-free to the environment. Microwave energy utilization efficiency is high, compared with conventional electric heating method, it can generally save 30% to 50% of electricity,
Application Field
Packing & Shipping
Certifications
