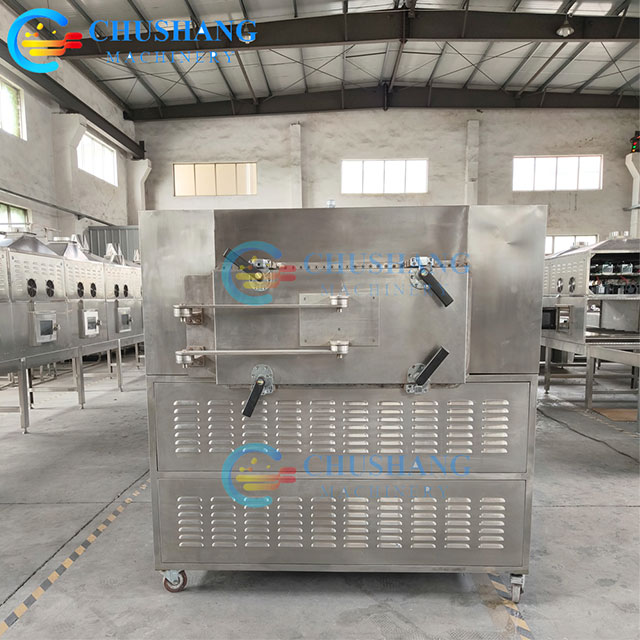

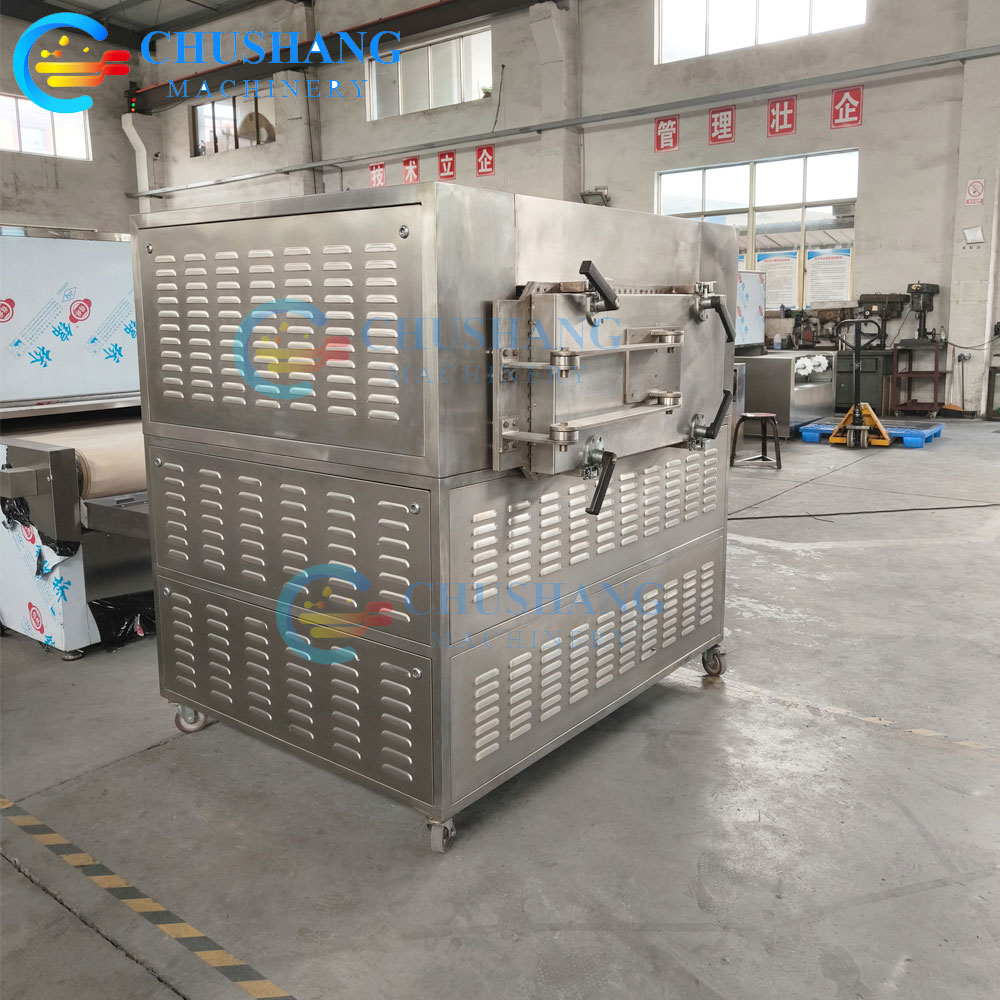

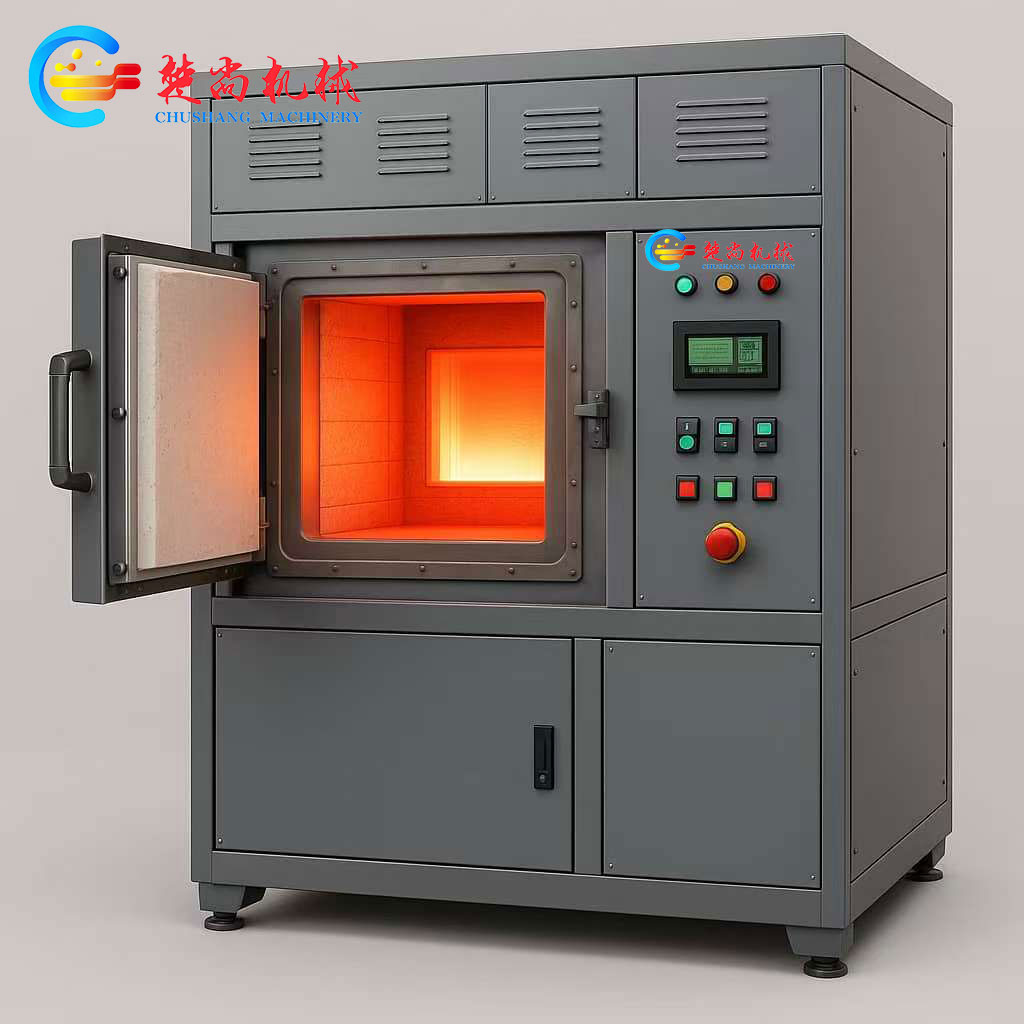

High Temperature Microwave Heating Sintering Furnace for Laboratory Equipment

This microwave high-temperature furnace is a high-efficiency heating device that utilizes microwave energy to achieve rapid temperature rise for high-temperature thermal processing. It is suitable for applications such as material sintering, metal heating, ceramic fabrication, and catalyst calcination. Compared to traditional electric or gas furnaces, it offers significant advantages including faster heating, more uniform temperature distribution, higher energy efficiency, and precise process control.

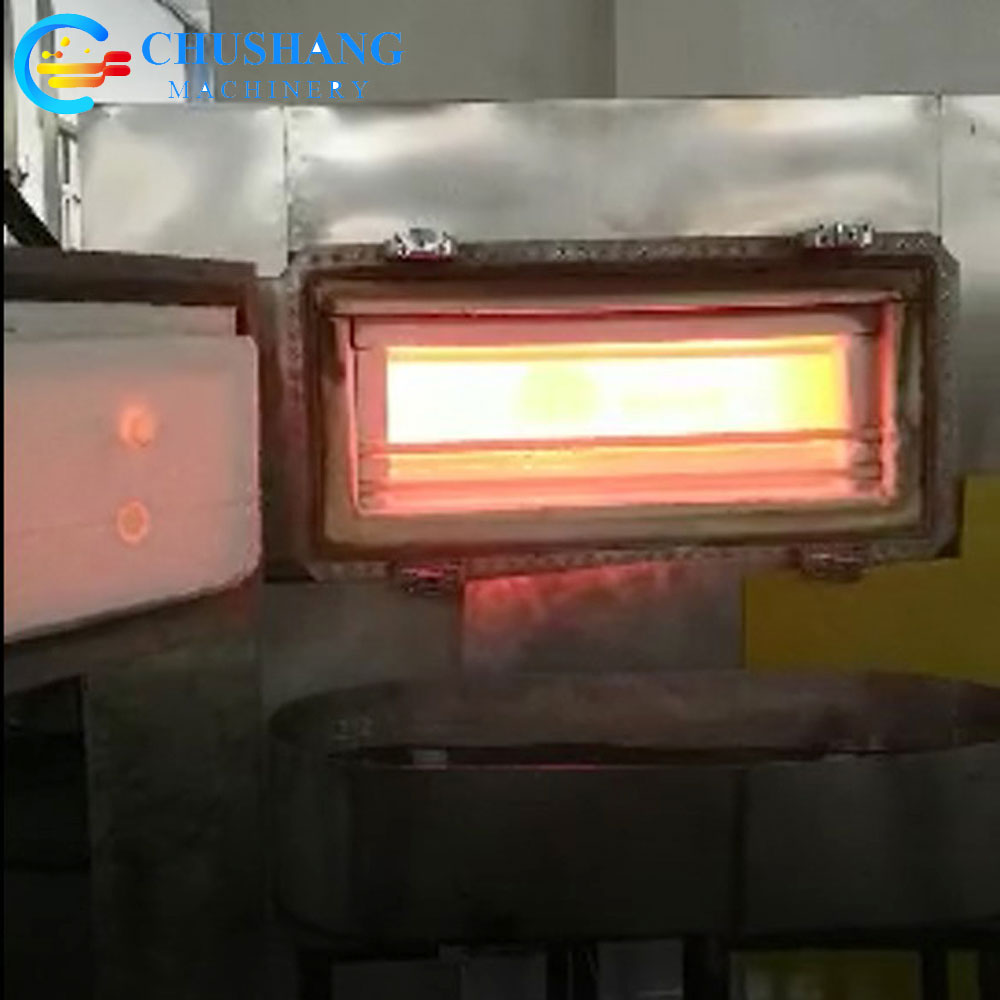

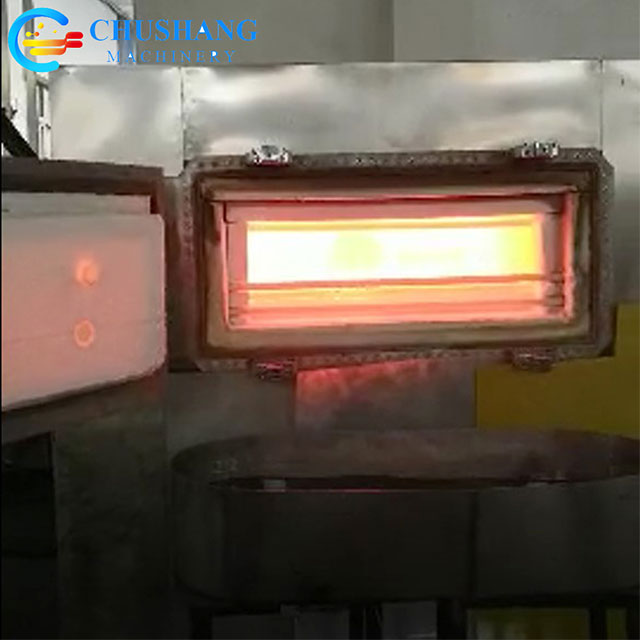

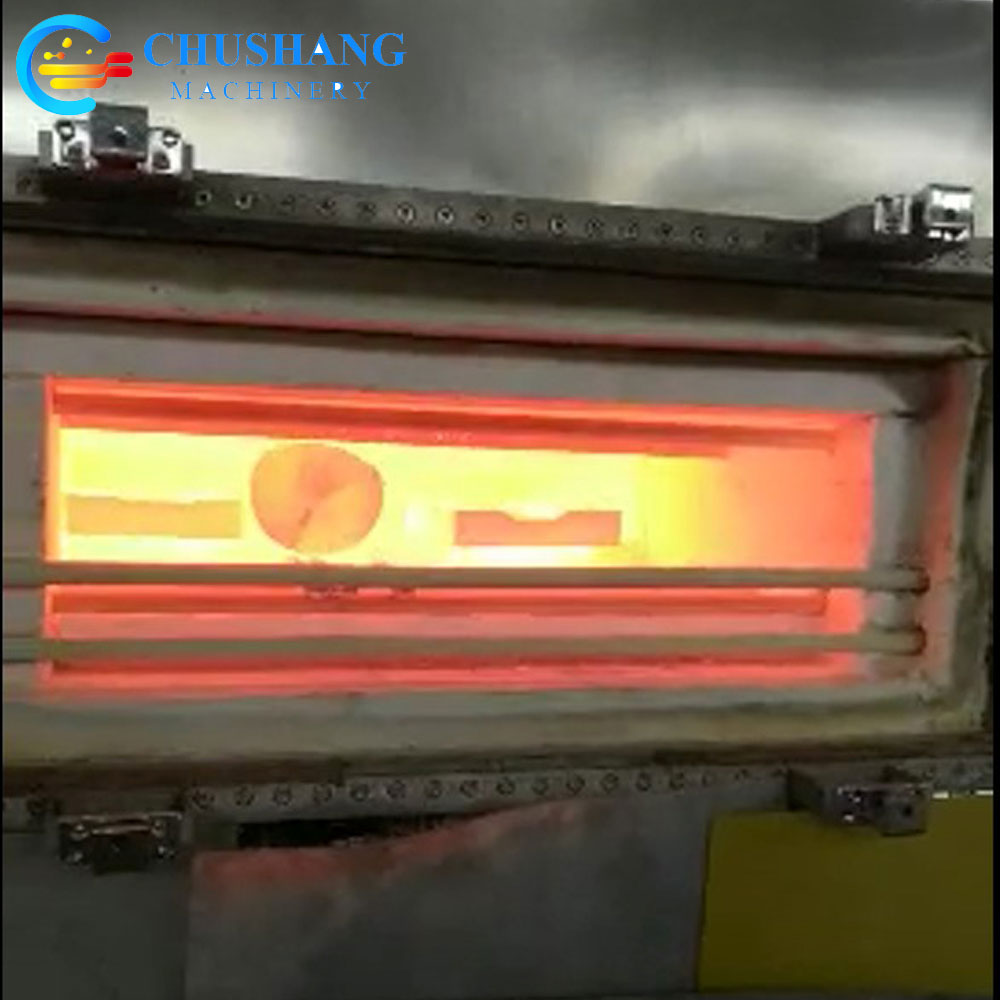

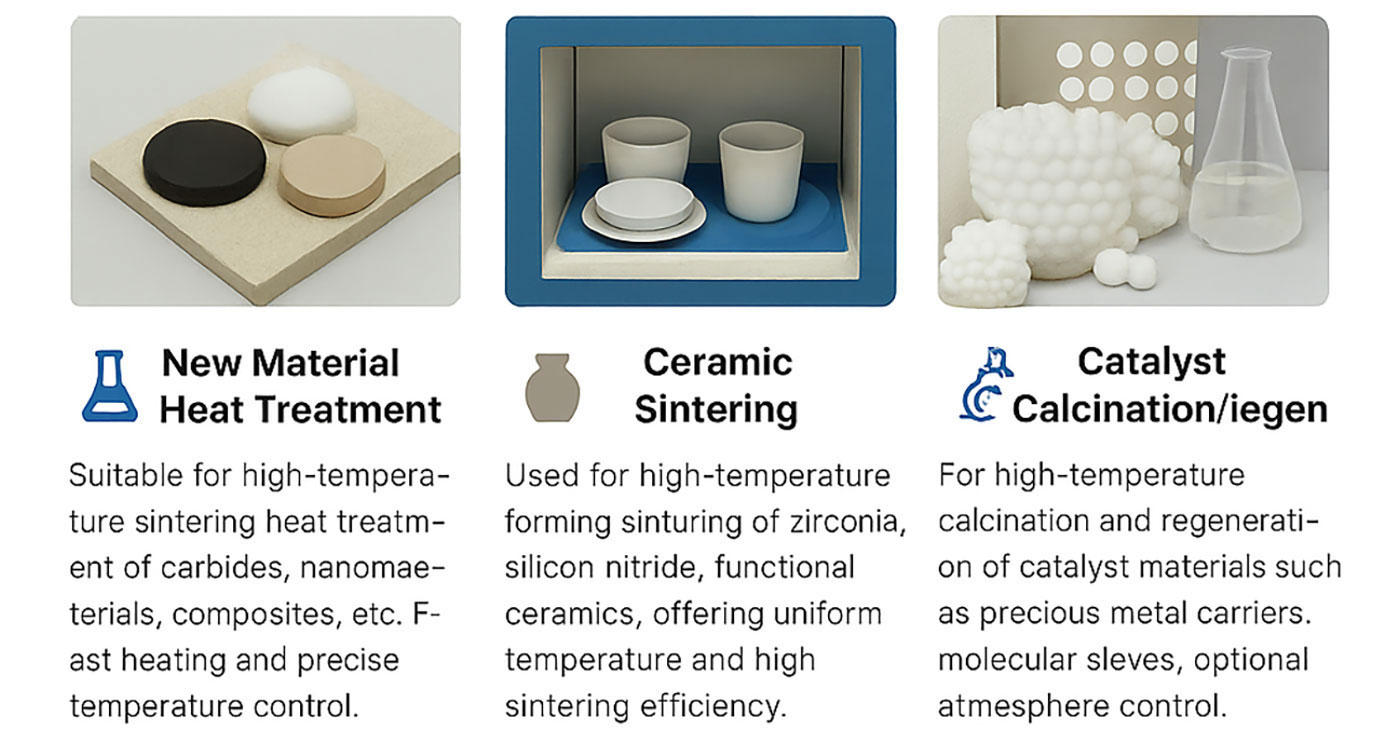

This equipment adopts a 2450 MHz industrial microwave source, combined with high-temperature refractory materials and an intelligent control system, enabling stable heating in a non-contact environment within the range of 200-1600°C. It is widely used in fields such as new materials, ceramics, metallurgy, chemical processing, and scientific research.

Quantity:
Availability:





Inquire Add to Basket

Microwave Kiln Furnace Sintering Furnace Microwave Heating Equipment High Temperature Furnace Laboratory Heating Equipment

Product Description

Technical Parameter

Model	Microwave Power	Working Temp. Range	Chamber Size (mm)	Overall Size (mm)	Temp. Control	Power Supply
CS-HPW-20	20 kW	200 ~ 1200ºC	400×300×200	1600×1200×1700	PID/PLC	380V/50Hz 3P
CS-HPW-30	30 kW	200 ~ 1200ºC	500×300×300	1800×1200×1800	PID/PLC	380V/50Hz 3P
CS-HPW-45	45 kW	200 ~ 1300ºC	600×400×400	2000×1300×1900	PID/PLC	380V/50Hz 3P
CS-HPW-60	60 kW	200 ~ 1500ºC	700×500×500	2200×1400×2000	PID/PLC	380V/50Hz 3P
CS-HPW-80	80 kW	200 ~ 1600ºC	800×600×600	2500×1600×2200	PID/PLC	380V/50Hz 3P
Custom Model	6~100 kW	200 ~ 1700ºC	Customizable	Customizable	PID/PLC	As required
